Custom High Current Inductors
Application:
- DC output chokes
- fly-back inductors and light dimmers
- EMI noise filter
- DC output/input filters.
Features:
- High energy storage capacity
- Low DCR
- Horizontal or vertical mounting
- Low cost design
- Operating temperature -55 to +105°C
GMATCI01, GMATCI02 and GMATCI03 Series high current toroid inductors are designed with a cost-effective, low-loss powdered core. The self-shielding characteristic of this toroid core enables these inductors to emit a very low level of radiation. They are an ideal choice for high-current, high-frequency and high density circuit designs as a differential mode choke, EMI filter or for energy storage.

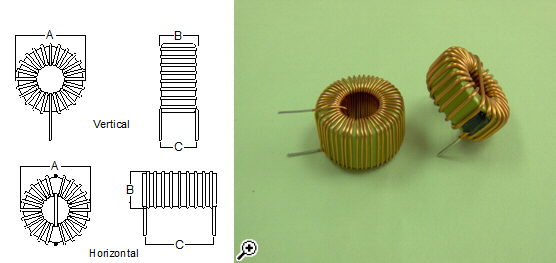

Dimensions:
SERIES
|
A
|
B
|
C(Vertical)
|
C(Horizontal)
|
INDUCTANCE
RANGE
|
|
Max
|
Max
|
Ref
|
Ref
|
|
GMATCI01
|
22.0
|
11.5
|
9.0
|
19.5
|
10µH ~ 1000µH
|
|
GMATCI02
|
24.0
|
14.0
|
12.0
|
22.5
|
10µH ~ 1000µH
|
|
GMATCI03
|
32.5
|
16.5
|
14.0
|
30.0
|
10µH ~ 1000µH
|
(Units: mm)
Specification: <High Current Inductor Series GMATCI01 SERIES>
HPE'S
PART NO
|
L (uH) ±15%
@1kHz
|
Idc (A)
|
L (uH) ±15%
@ I rated
|
RDC ( )
MAX
|
|
GMATCI01-01
|
10
|
10.8
|
6.3
|
0.007
|
|
GMATCI01-02
|
12
|
10.3
|
7.4
|
0.008
|
|
GMATCI01-03
|
15
|
7.7
|
10.2
|
0.012
|
|
GMATCI01-04
|
18
|
7.4
|
11.9
|
0.013
|
|
GMATCI01-05
|
22
|
7.0
|
14.2
|
0.015
|
|
GMATCI01-06
|
27
|
5.3
|
20.5
|
0.026
|
|
GMATCI01-07
|
33
|
5.0
|
23.5
|
0.029
|
|
GMATCI01-08
|
31
|
4.8
|
22.8
|
0.032
|
|
GMATCI01-09
|
47
|
3.6
|
34.7
|
0.055
|
|
GMATCI01-10
|
56
|
3.4
|
40.6
|
0.060
|
|
GMATCI01-11
|
68
|
3.3
|
48.3
|
0.067
|
|
GMATCI01-12
|
100
|
2.4
|
75.2
|
0.13
|
|
GMATCI01-13
|
120
|
2.2
|
88.5
|
0.15
|
|
GMATCI01-14
|
150
|
3.4
|
84.3
|
0.07
|
|
GMATCI01-15
|
180
|
2.6
|
113.1
|
0.11
|
|
GMATCI01-16
|
220
|
2.4
|
134.4
|
0.15
|
|
GMATCI01-17
|
270
|
1.8
|
181.6
|
0.21
|
|
GMATCI01-18
|
330
|
1.7
|
216.3
|
0.23
|
|
GMATCI01-19
|
390
|
1.7
|
250.1
|
0.25
|
|
GMATCI01-20
|
470
|
1.6
|
293.8
|
0.28
|
|
GMATCI01-21
|
560
|
1.5
|
341.5
|
0.30
|
|
GMATCI01-22
|
680
|
1.4
|
430.3
|
0.37
|
|
GMATCI01-23
|
820
|
1.4
|
472.8
|
0.40
|
|
GMATCI01-24
|
1000
|
1.3
|
635.2
|
0.45
|
Specification: < High Current Inductor Series GMATCI02 SERIES>
HPE'S
PART NO
|
L (uH) ±15%
@1kHz
|
Idc (A)
|
L (uH) ±15%
@ I rated
|
RDC ()
MAX
|
|
GMATCI02-01
|
10
|
12.5
|
5.8
|
0.008
|
|
GMATCI02-02
|
12
|
12.0
|
6.3
|
0.009
|
|
GMATCI02-03
|
15
|
11.3
|
7.3
|
0.009
|
|
GMATCI02-04
|
18
|
10.8
|
9.0
|
0.010
|
|
GMATCI02-05
|
22
|
10.3
|
10.5
|
0.012
|
|
GMATCI02-06
|
27
|
9.8
|
12.5
|
0.013
|
|
GMATCI02-07
|
33
|
7.4
|
17.5
|
0.020
|
|
GMATCI02-08
|
39
|
7.1
|
20.5
|
0.022
|
|
GMATCI02-09
|
47
|
6.7
|
23.5
|
0.024
|
|
GMATCI02-10
|
56
|
6.4
|
27.5
|
0.026
|
|
GMATCI02-11
|
68
|
4.9
|
36.5
|
0.046
|
|
GMATCI02-12
|
100
|
4.4
|
57.0
|
0.056
|
|
GMATCI02-13
|
120
|
3.3
|
71.0
|
0.098
|
|
GMATCI02-14
|
150
|
3.1
|
86.0
|
0.11
|
|
GMATCI02-15
|
180
|
3.8
|
84.0
|
0.075
|
|
GMATCI02-16
|
220
|
3.6
|
100.0
|
0.084
|
|
GMATCI02-17
|
270
|
3.4
|
120.5
|
0.10
|
|
GMATCI02-18
|
330
|
3.3
|
143.5
|
0.12
|
|
GMATCI02-19
|
390
|
2.5
|
197.0
|
0.18
|
|
GMATCI02-20
|
470
|
2.3
|
235.5
|
0.19
|
|
GMATCI02-21
|
560
|
2.2
|
273.5
|
0.21
|
|
GMATCI02-22
|
680
|
2.1
|
323.0
|
0.25
|
|
GMATCI02-23
|
820
|
2.0
|
380.5
|
0.28
|
|
GMATCI02-24
|
1000
|
1.9
|
480.5
|
0.32
|
Specification: < High Current Inductor Series GMATCI03 SERIES>
HPE'S
PART NO
|
L (uH) ±15%
@1kHz
|
Idc (A)
|
L (uH) ±15%
@ I rated
|
RDC ()
MAX
|
|
GMATCI03-01
|
10
|
20.0
|
6.0
|
0.005
|
|
GMATCI03-02
|
12
|
19.1
|
7.8
|
0.005
|
|
GMATCI03-03
|
15
|
18.0
|
9.5
|
0.006
|
|
GMATCI03-04
|
18
|
17.2
|
11.1
|
0.006
|
|
GMATCI03-05
|
22
|
16.4
|
13.2
|
0.007
|
|
GMATCI03-06
|
27
|
15.6
|
15.7
|
0.008
|
|
GMATCI03-07
|
33
|
11.7
|
21.3
|
0.013
|
|
GMATCI03-08
|
39
|
11.2
|
24.7
|
0.014
|
|
GMATCI03-09
|
47
|
10.7
|
29.0
|
0.016
|
|
GMATCI03-10
|
56
|
10.2
|
33.7
|
0.017
|
|
GMATCI03-11
|
68
|
7.7
|
45.2
|
0.030
|
|
GMATCI03-12
|
100
|
7.0
|
63.1
|
0.037
|
|
GMATCI03-13
|
120
|
6.7
|
73.9
|
0.040
|
|
GMATCI03-14
|
150
|
5.0
|
101.4
|
0.071
|
|
GMATCI03-15
|
180
|
4.8
|
118.9
|
0.078
|
|
GMATCI03-16
|
220
|
5.8
|
123.8
|
0.054
|
|
GMATCI03-17
|
270
|
5.5
|
147.2
|
0.060
|
|
GMATCI03-18
|
330
|
5.2
|
174.1
|
0.067
|
|
GMATCI03-19
|
390
|
5.0
|
200.2
|
0.072
|
|
GMATCI03-20
|
470
|
3.8
|
271.4
|
0.130
|
|
GMATCI03-21
|
560
|
3.6
|
314.8
|
0.140
|
|
GMATCI03-22
|
680
|
3.4
|
370.7
|
0.150
|
|
GMATCI03-23
|
820
|
2.6
|
500.9
|
0.270
|
|
GMATCI03-24
|
1000
|
2.4
|
593.6
|
0.300
|
Please, let us review your transformer requirements. Contact Galaxy Transformers.
