Common Mode Inductors / EMI Filters (UU Type)

Special Features：

  • Reduce conductive EMI emission
  • High inductance, compact size
  • High attenuation at low frequency
  • Dielectric strength 2000VRMS
  • Coil wound on VW-1 rated plastic bobbin
  • Operating temperature -55 to +105°C
  • Inductance Measured At 1KHz 0.25V.
  • Rated current to cause 35°C maximum temperature rise

Core mounted horizontal or vertical (add H or V after P/N)

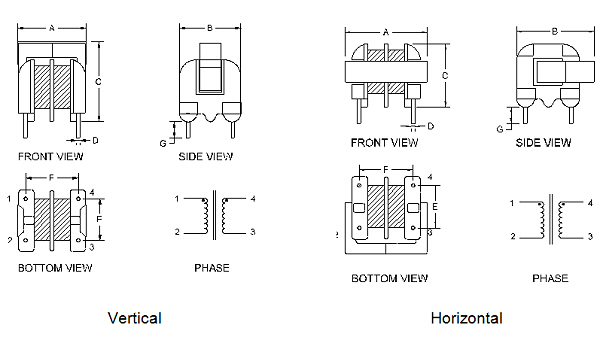

Configuration:

Dimensions:


SERIES
A
B(V)
B(H)
C(V)
C(H)
D
E
F
G
MAX
MAX
MAX
MAX
MAX
±0.1
±0.3
±0.3
±0.5
GMATEF1
16.0
12.0
16.0
16.5
12.5
0.6
7.0
8.0
5.0
GMATEF2
19.0
17.0
20.5
22.0
15.0
0.7
10.0
13.0
5.0
GMATEF3
22.5
18.5
25.0
28.0
20.5
0.7
10.0
13.0
5.0

(Units: mm)

Specification: <High Current Inductor Series GMATEF1 SERIES>

Part Number
OCL1-2/3-4
mH min
I rms max
Amperes
DCR 1-2/3-4
Ω max
GMATEF1-01-H/V
1.0
0.70
0.08
GMATEF1-02-H/V
2.0
0.50
0.12
GMATEF1-03-H/V
5.0
0.32
0.25
GMATEF1-04-H/V
8.0
0.25
0.35
GMATEF1-05-H/V
12.0
0.20
0.60
GMATEF1-06-H/V
20.0
0.16
1.20
GMATEF1-07-H/V
22.0
0.15
1.40



Specification: <High Current Inductor Series GMATEF2 SERIES>

Part Number
OCL1-2/3-4
mH min
I rms max
Amperes
DCR 1-2/3-4
Ω max
GMATEF2-01-H/V
1.0
1.42
0.06
GMATEF2-02-H/V
2.0
1.00
0.10
GMATEF2-03-H/V
5.0
0.63
0.16
GMATEF2-04-H/V
8.0
0.50
0.30
GMATEF2-05-H/V
12.0
0.41
0.40
GMATEF2-06-H/V
20.0
0.32
0.90
GMATEF2-07-H/V
22.0
0.30
1.20



Specification: <High Current Inductor Series GMATEF2 SERIES>

Part Number
OCL1-2/3-4
mH min
I rms max
Amperes
DCR 1-2/3-4
Ω max
GMATEF3-01-H/V
1.0
2.80
0.05
GMATEF3-02-H/V
2.0
2.00
0.06
GMATEF3-03-H/V
5.0
1.30
0.09
GMATEF3-04-H/V
8.0
1.00
0.12
GMATEF3-05-H/V
12.0
0.82
0.20
GMATEF3-06-H/V
20.0
0.65
0.30
GMATEF3-07-H/V
22.0
0.60
0.32
